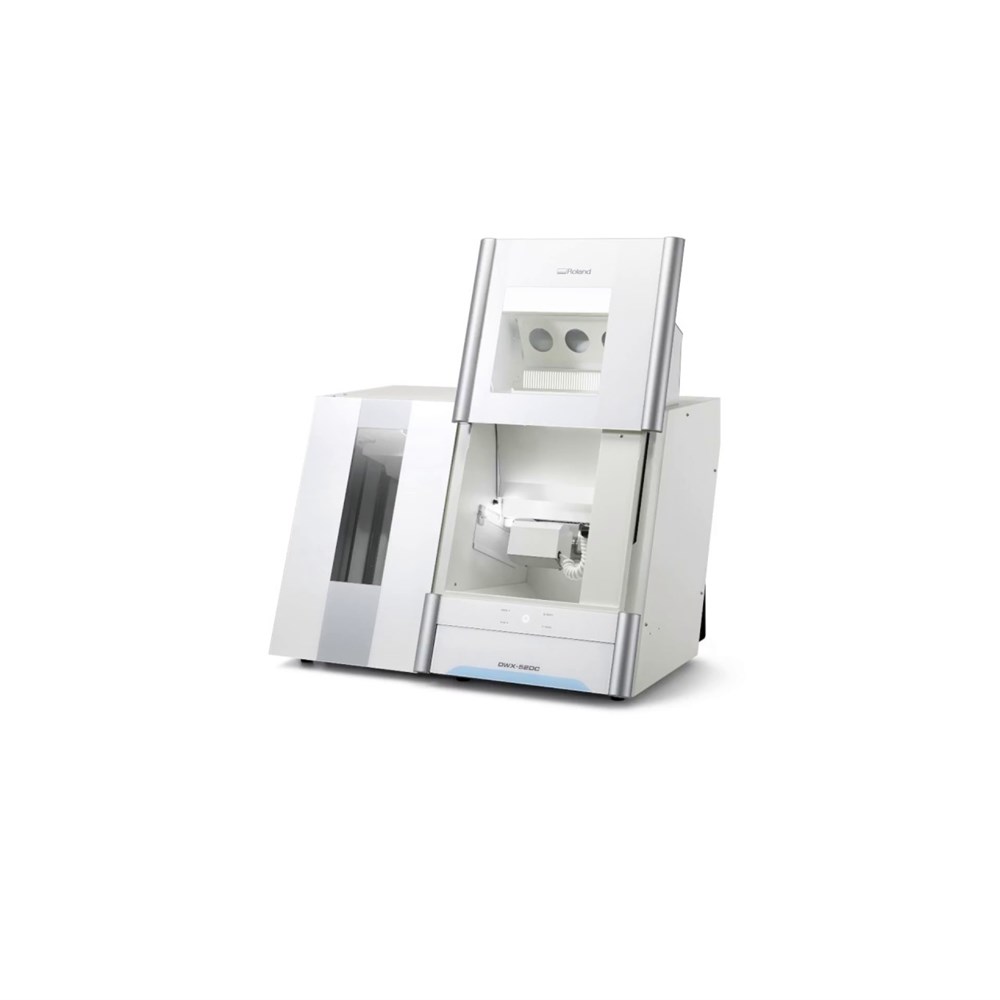

Roland DWX-52DCi Dry Milling

The ultimate in ease, material flexibility and unattended production, the DWX-52DCi dental milling machine expands your lab production and profit. With a 6-slot Automatic Disc Changer, 15-station Automatic Tool Changer and other automated features, it gives users of all skill levels an exceptionally powerful, efficient and affordable dental restoration solution.

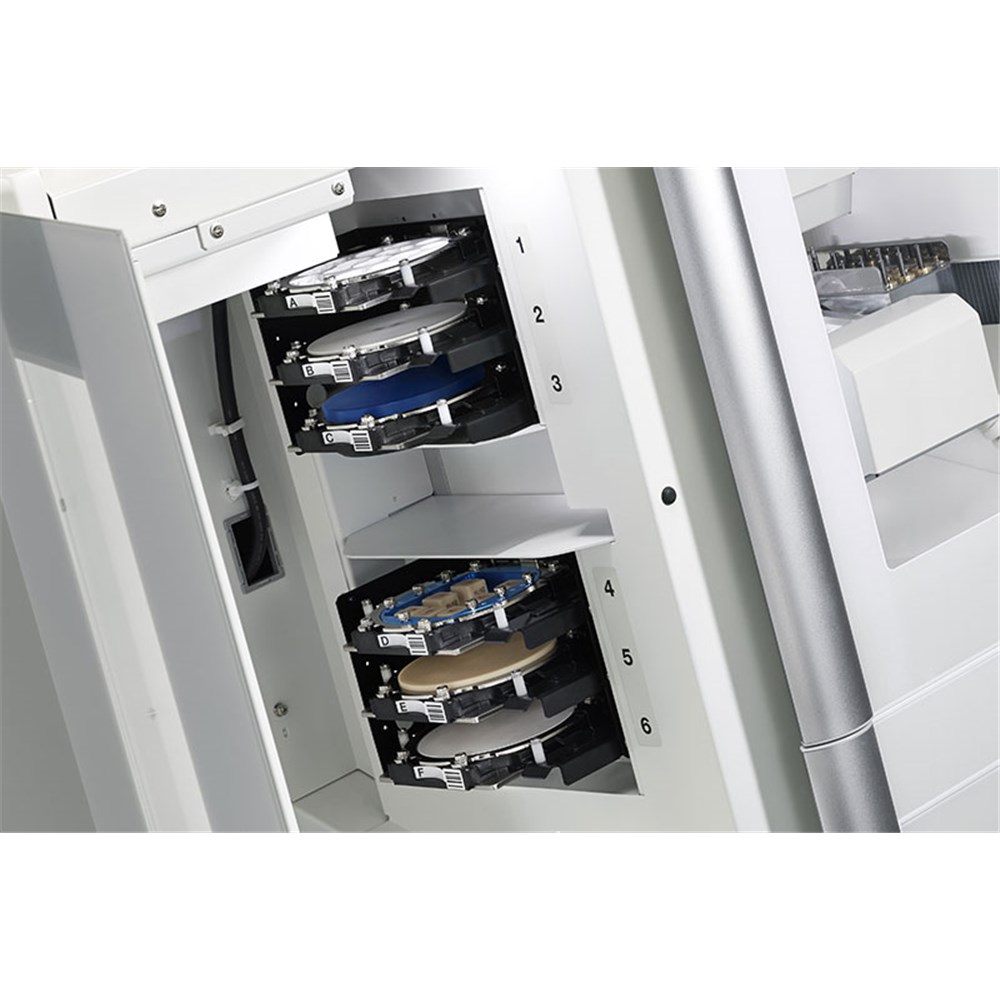

Automatic Disc Changer - (ADC)
Load the six material adapters with different shades of zirconia or any combination of material discs to suit your needs. Assign them with milling jobs and let the automatic disc changer do the rest.
The adapter system enables multi-device adapter integration. The same material adapters can be milled on both the DWX-52DCi and DWX-52D for a convenient and scalable milling solution.

Automatic Tool Changer - (ATC)
Load the 15-station ATC with a variety of diamond coated, carbide and DGSHAPE by Roland hybrid tools to continuously mill jobs in different materials and multiple shades of zirconia without stopping production.

Intelligent Tool Control
Part of the simplified VPanel operation, an Intelligent Tool Control (ITC) function automatically swaps out tools that have reached their user-defined lifespan with a designated “partner tool” without needing to pause production.

5-Axis Milling
A smooth and steady ball screw-driven system provides superior milling results – simultaneously rotating and tilting discs for deep undercuts and also milling large arch restorations and other full-mouth prosthetics.

Automatic Air Pressure Control
An automated regulator eliminates the need for manual air control adjustments by changing air volume based on material data via the CAM software.

Intuitive Software for Added Milling Control
The DWX-52DCi features new DWINDEX software that enables users to plan, identify and manage indexing operations to assert improved control over the machine productivity. It offers data accumulation and analysation for the following key features:

• Operation time per tool
• Operation time per disk
• Operation time of the unit (day/week/month)
• Error log
• History of materials used
• History of deliverables

User Replaceable Spindle
The DWX-52DCi features a spindle that can be replaced in a matter of minutes, without needing to call out a technician. No special tools, testing or training is required.

Accessories for DWX-52DCi
RO1-ZR52D             Disk Adapter Rack for DWX-52 series
RO1-ZMA52DC-6   Material adapter DWX-52 series
RO1-ZV52D             Pin Type Adaptor for DWX-52 series
RO1-CA-52DC        Cast Milling Material Adapter for DWX-52 series
RO1-ZC4D               Collet Replacement Kit DWX-52 series
RO1-ZBH4D            Milling Bur Holder DWX-52 series
RO1-ZCT4D            Cleaning Tool DWX-52DCi (4hrs or 160 teeth)
RO1-ZS4D               Spindle Replacemant kit (ZSB170 spindle Belt Included) DWX-52 series : Life Expectancy 2000hrs
RO1-ZSB170          Spindle Belt: Life Expectancy 2000hrs

Tools for the DWX-52DCi
