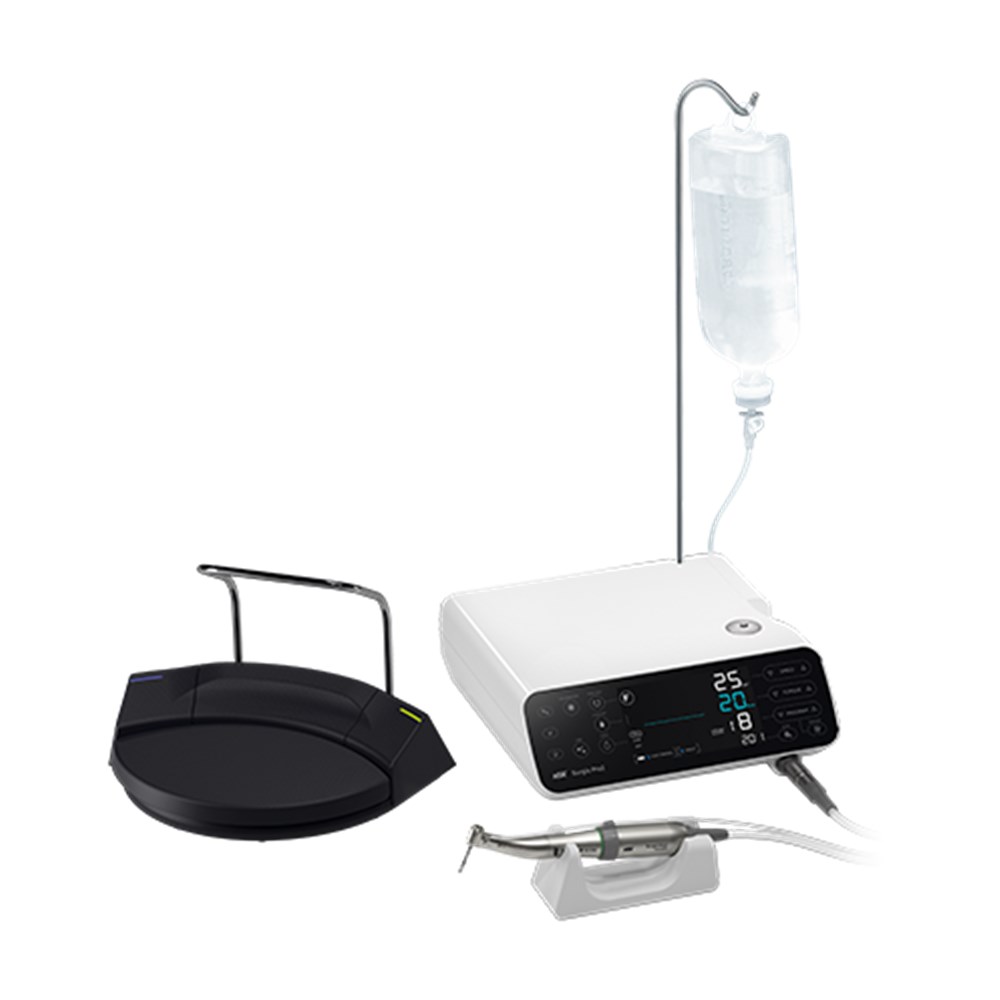

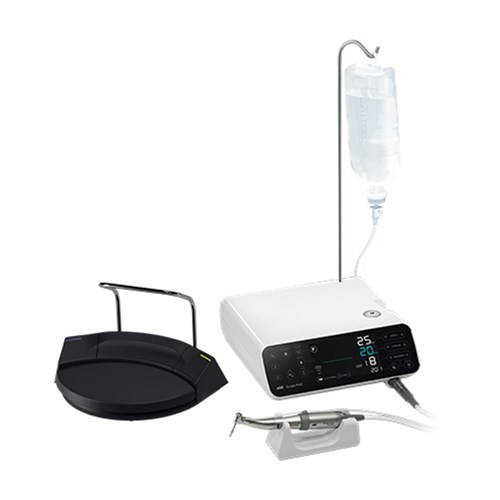

Surgic Pro2 Non-LED Unit with X-SG65L 1:1 HP & SG80M Motor

NSK Surgic Pro2 - The Newest Surgical motor system from NSK
25% shorter, 9% lighter than current motor – Greatly improved balance. Significantly improved optics (LED). Wireless Foot Control. Link by Bluetooth

WHAT’S NEW?

The Surgic Pro2 has been designed to enhance the performance of the Surgic Pro with a range of new specifications to ensure greater comfort, efficiency and safety during implant treatment and oral surgery.

Lighter, more compact motor to alleviate operator stress during prolonged surgical procedures
Large, back-lit, high contrast LCD panel with clear icons and a display adjustable to 10 different brightness levels
High-resolution, long-lasting colour LED light source
More predictable treatment
A large part of the success of the Surgic Pro has been as a result of the unique NSK Advanced Handpiece Calibration (AHC) function guaranteeing more accurate speed and torque control, and the Surgic Pro2 takes this further still.

The accuracy of the torque value is dependent on the state of the handpiece bearings and gear abrasion which the Surgic Pro2 calibration now takes into account to display more accurate values. AHC corrects the differences in the handpiece’s condition by minimising the discrepancy between the set torque value and the actual output which helps to improve overall treatment outcomes.


WIRELESS CONNECTIVITY
Rather than being just a surgical micromotor, the Surgic Pro2 is now a central interface for other primary surgical applications. For example, the Osseo 100+measures implant stability and osseointegration to aid decisions about when to load the implant. Along with the VarioSurg3 ultrasonic surgical unit, the Osseo 100+ can be connected to the Surgic Pro2 via Bluetooth.


This allows the VarioSurg3 to be operated by the same wireless foot control with the values measured by the Osseo 100+ simultaneously shown on the Surgic Pro2 display. The one-foot control makes it easy to switch between the Surgic Pro2 and VarioSurg3 for improved flexibility and workflow. Using the free NSK app means all patient and treatment-related data generated during procedures can be visualised and saved to an external device. Data can then be displayed and transferred as required or stored in the electronic patient file whilst also providing full traceability of procedures to aid compliance.

LCD Touch Panel
Visibility is guaranteed with the large, back-lit, high-contrast, LCD panel.

The display can be adjusted in 10 brightness levels. The display's intuitive and easy-to-understand icons allow for smooth operation.

Easy-clean flat-screen display
The sensitivity of the touch panel can be adjusted to reliably respond when surgical gloves and surgical barrier sheets are in use. Ultra-narrow bezel of the display makes cleaning easier. The new design takes into account the latest treatment and cross-infection control requirements.

Silent and Smooth Irrigation Pump
The irrigation pump provides consistent and steady flow operating quietly in the background. Irrigation tube set-up is simple and straightforward and the pump fits seamlessly in the compact and elegant design of Surgic Pro2.

FOOT CONTROL WIRELESS
Bluetooth connectivity allows selection of the optimal position without worrying about cable length. The foot controller is 400g lighter than the previous model (hangar included) making it easy to reposition. You can keep your focus on the treatment.

The "Coolant Solution Flow Volume Button", "Program Button" and "Forward/Reverse Button" may be customized using the 3 installed buttons allowing the operator to choose their preferred mode of operation. The energy-efficient power supply uses 3 AAA batteries, which last about 6 months.

A flashing light indicates when the batteries are running low.

Linked with the "VarioSurg 3" ultrasonic bone surgery system
Surgic Pro2 can easily be linked with the NSK ultrasonic surgical system VariosSurg 3 by adding our bluetooth link module.

With the NSK link stand the two units can be safely stacked to save space.

One Foot Control
You can easily switch between Surgic Pro2 and VarioSurg 3 for improved flexibility and workflow.


Linked with iPads
Installing a dedicated application and connecting an iPad to the control unit enables the real-time display of detailed procedural data, such as the rotation speed and the torque range.

Procedural data can also be saved. Data can also be displayed and saved when connecting with Osseo 100+. Traceability data management of procedural details allows implant treatment to be tailored to individual patients.

Visibility is significantly improved with the high-resolution color LED
The use of high-resolution color LED allows blood and gums to be seen as if naturally lit, thereby providing increased visibility during treatment. The LED light source generates a minimal amount of heat and has an excellent life expectancy.



The optic version comes equipped with the X-SG20L titanium contra-angle handpiece while the non-optic version is equipped with the SG20 stainless steel contra-angle handpiece, and both options are ready-to-use without any further configuration.



Content:
This complete set comes with X-SG20L optic handpiece with 20:1 reduction, Control Unit, SG80M Optic Micromotor, FOOT CONTROL WIRELESS, Irrigation tube (pack of 3) and other accessories.


Specifications

Power Supply: AC 100-240 V 50/60 Hz
Max. Pump Output: 75 mL/min
Programs: 8 Programs / Implant Systems
Dimensions: W 245 x D 235 x H 90 mm
Torque: 5-80 Ncm
Motor Speed: 200-40,000 min-1
Light Power (Optic Micromotor): Over 32,000 LUX
Foot Control Functions: Coolant Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Pedal
